- No.104

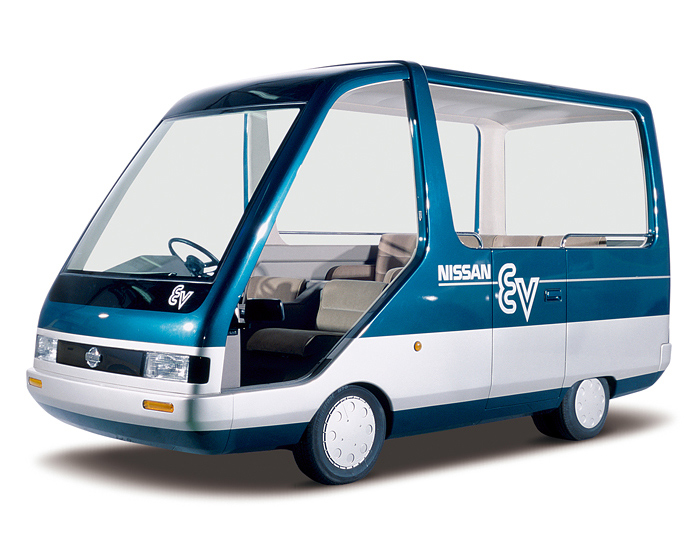

EV Guide-II (Electric Vehicle) (1985 : -)
Electric Vehicle
Specifications
- Overall length / width / height
- 4,090/1,620/2,180mm
- Wheelbase
- 2,300mm
- Curb weight
- 1,525kg
- Motor
- DC series-wound
- Rated output
- 7.5kW (1PS)
- Batteries
- 12V E120 lead-acid battery (x8)
- Tires (front, rear)
- 175/70SR13/5.00-10-6PR
- Seating capacity
- 6
- Gradability
- 0.34 (tan)
- Cruising range per charge
- 60km
- Top speed
- 16km/h
- Note:Exhibited at 1985 Tokyo Motor Show
Download
- High resolution image 2,400x1,800pix
- Low resolution image 640x480pix
Related information
- [ShortStory]
- Solar car race .
The EV Guide (type II) was exhibited at the 26th Tokyo Motor Show in 1985 and is a one-box type, six-seater electric car (remodeled after the show to add a roof). The clean performance of this electric car made it ideal for transporting royalty and other state guests on VIP factory visits, and it performed admirably as a guide car for many years.
