- No.232

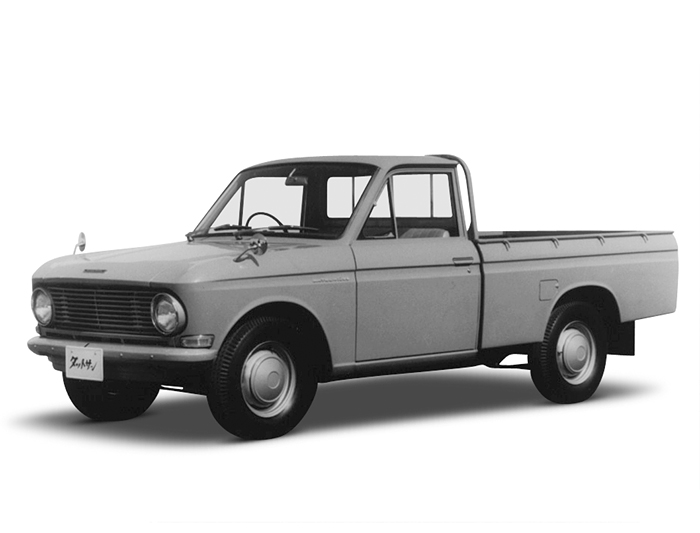

Datsun Truck 1300 (1966 : 520)
Commercial Vehicle
Specifications
- Overall length / width / height
- 4,245/1,575/1,545mm
- Wheelbase
- 2,530mm
- Tread (front/rear)
- 1,170/1,187mm
- Curb weight
- 960kg
- Engine
- J (4-cyl. in line, OHV), 1,299cc
- Engine Max. power
- 46kW (62PS)/4,800rpm
- Engine Max. torque
- 98Nm (10kgm)/3,600rpm
- Transmission
- 4-speed, column shift
- Suspension (front, rear)
- Torsion bar, semi-elliptic leaf
- Brakes
- Drum (front & rear)
- Seating capacity / Max. load capacity
- 3 / 1,000kg
Download
- High resolution image 2,400x1,800pix
- Low resolution image 640x480pix
Related information
- [ShortStory]
- History of Datsun Pickup Trucks.
- [ShortStory]
- Roots of the Datsun Pickup Truck.
The 520 (13th generation) was launched in May 1965 following a full change of the 320 (the 420 did not exist). As well as using the newly developed 1,300cc J engine, it increased seating capacity to three. Due to improvements in the suspension, the wheelbase extension (+60mm) and the greater front and rear treads (+80mm), driving ease and ride comfort were greatly improved.
