- No.316

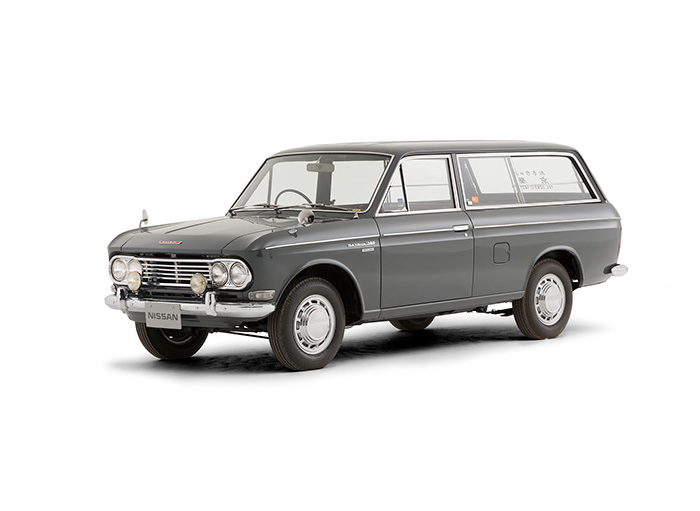

Datsun 1300 Van (1966 : V520)
Commercial vehicle
Specifications
- Overall length / width / height
- 4,300/1,570/1,525mm
- Wheelbase
- 2,530mm
- Tread
- 1,250/1,267mm
- Curb weight
- 1,070kg
- Engine
- J (4-cyl. inline, OHV), 1,299cc
- Engine Max. power
- 46kW (62ps)/5,000rpm
- Engine Max. torque
- 98N·m (10.0kgf·m) / 2,800rpm
- Suspension (front/rear)
- Wishbone torsion bar / Parallel leaf
- Brakes (front/rear)
- Drum / Drum
- Tires
- 5.50-14-6PLT
Download
- High resolution image 2,400x1,800pix
Related information
- [ShortStory]
- History of Datsun Pickup Trucks.
- [ShortStory]
- Roots of the Datsun Pickup Truck.
DATSUN Vans have supported daily life of Japanese by transporting various goods from Nissan's early days. Van 520 was rolled out in 1965. Mounted engine was J (1300cc, the max. output 62ps, the max. torque 10kgm). The max. speed
leaped to 120km/h, which made long-distance, high-speed driving easier. 55mm increase in width resulted in the seating capacity of 3 and more comfortableness.
The body resembled Bluebird 410 from the beginning. Headlamps became 4-bulb type lamps in 1966 and the appearance looked more alike. The fourspeed manual transmission was fully synchronized, and the lineup became
"Deluxe" and "Standard". This is "Deluxe" after a minor change.
